Qt Stylesheets Button Bar Tutorial

To demonstrate the awesomeness of Qt’s stylesheets, we’ll make a modern looking button bar (inspired by Qt Creator) that looks like this:

Let’s get started

Step 1 Open Designer and create a new empty widget:

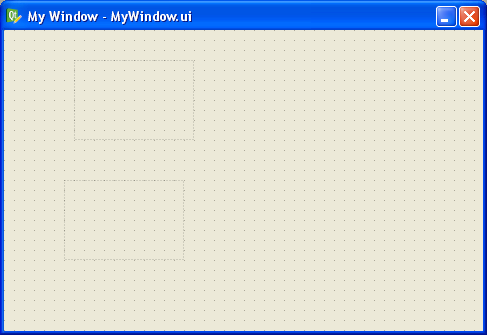

Step 2 Toss a couple QFrames on the widget, one above the other. Name them topFrame and bottomFrame, like this:

Step 3 Apply a vertical layout to your widget (just click on the background area and then click the vertical layout button in Designer’s toolbar. It should look like this now:

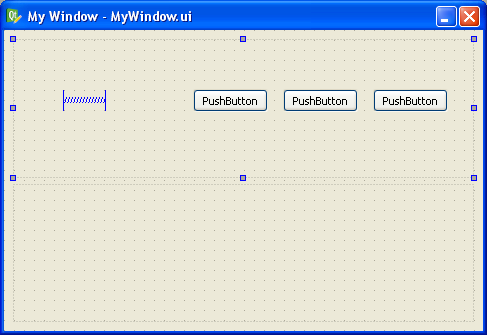

Step 4 Drag and drop a few buttons and a horizontal spacer onto the frame you called “topFrame” (don’t forget to name it if you haven’t already)

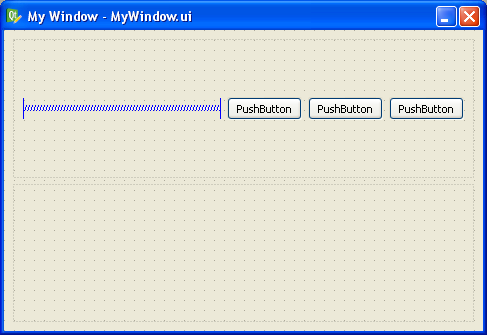

Step 5 Apply a horizontal layout to the “topFrame”

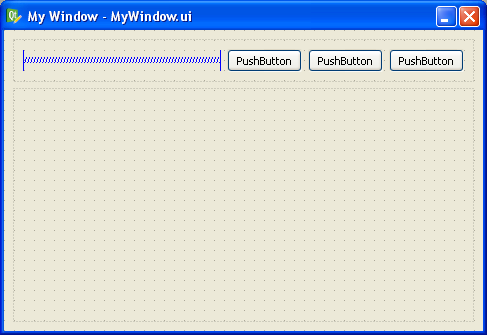

Step 6 Set the vertical size policy for the “topFrame” to “Fixed”. This makes it shrink to a minimum size and lets the bottom frame grow to fill the rest of the widget.

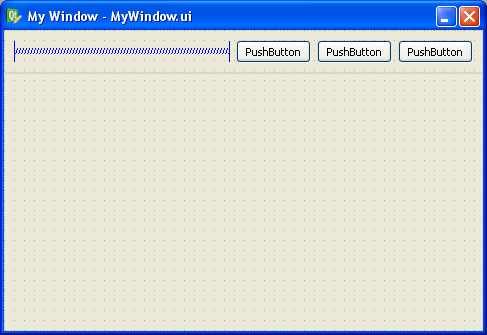

Step 7 Set your margins and spacings to 0 (do this by clicking on the background and at the bottom of Property editor you’ll find the “Layout” section which lets you specify this stuff).

Step 8 Add a style sheet to your widget (right click on the top-most entry in the Object Inspector and select “Change styleSheet…”). Put this style in there for now:

#topFrame {
border: none;
background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,
stop: 0 #a6a6a6, stop: 0.08 #7f7f7f,
stop: 0.39999 #717171, stop: 0.4 #626262,
stop: 0.9 #4c4c4c, stop: 1 #333333);
}

#bottomFrame {
border: none;
background: white;
}

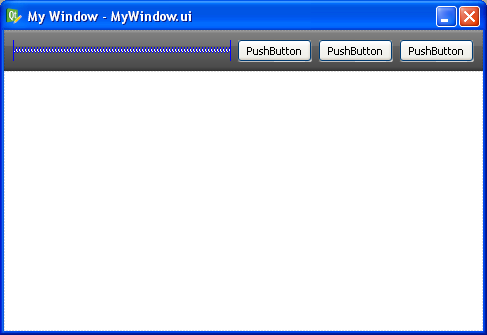

That will give the topFrame a nice modern background that looks like this:

Step 9 Now stylize the buttons. Add this to your stylesheet:

#topFrame QPushButton {
color: #333;
border: 2px solid #555;
border-radius: 11px;
padding: 5px;
background: qradialgradient(cx: 0.3, cy: -0.4,
fx: 0.3, fy: -0.4,
radius: 1.35, stop: 0 #fff, stop: 1 #888);
min-width: 80px;
}

#topFrame QPushButton:hover {
background: qradialgradient(cx: 0.3, cy: -0.4,
fx: 0.3, fy: -0.4,
radius: 1.35, stop: 0 #fff, stop: 1 #bbb);
}

#topFrame QPushButton:pressed {
background: qradialgradient(cx: 0.4, cy: -0.1,
fx: 0.4, fy: -0.1,
radius: 1.35, stop: 0 #fff, stop: 1 #ddd);
}

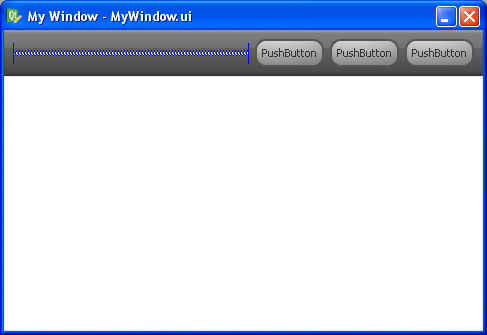

That style sheet makes the buttons have rounded corners, a nifty radial gradient background, and modern hover and click effects, like this:

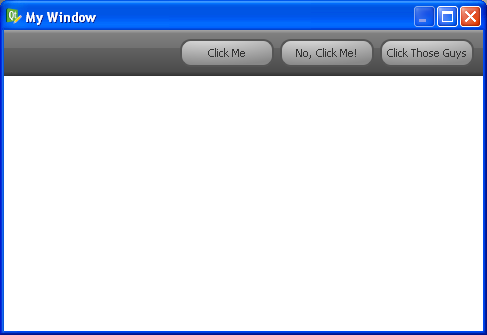

Now press Ctrl+R and view the finished product:

Aren’t Qt stylesheets awesome?
